elZinc® composite material is a high quality wall cladding material, providing long-term performance and flexibility of design for the most demanding of projects.
It consists of two elZinc® sheets continuously bonded to a ridged core made of either low-density polyethylene (PE) or of mineral filled Fire Resistant resin (FR) to provide flatness and lightness. The FR core material is defined as providing very little contribution to a fire by Euroclass fire classification.
The advanced production process ensures excellent bonding, achieving twice the recommended determination values.
Available in every elZinc® aesthetic surface finish and in elZinc Advance®, elZinc composite panel will enhance your most creative project.
Main advantages
- Excellent formability
- Outstanding strength-to-weight ratio
- Excellent flatness
Main applications

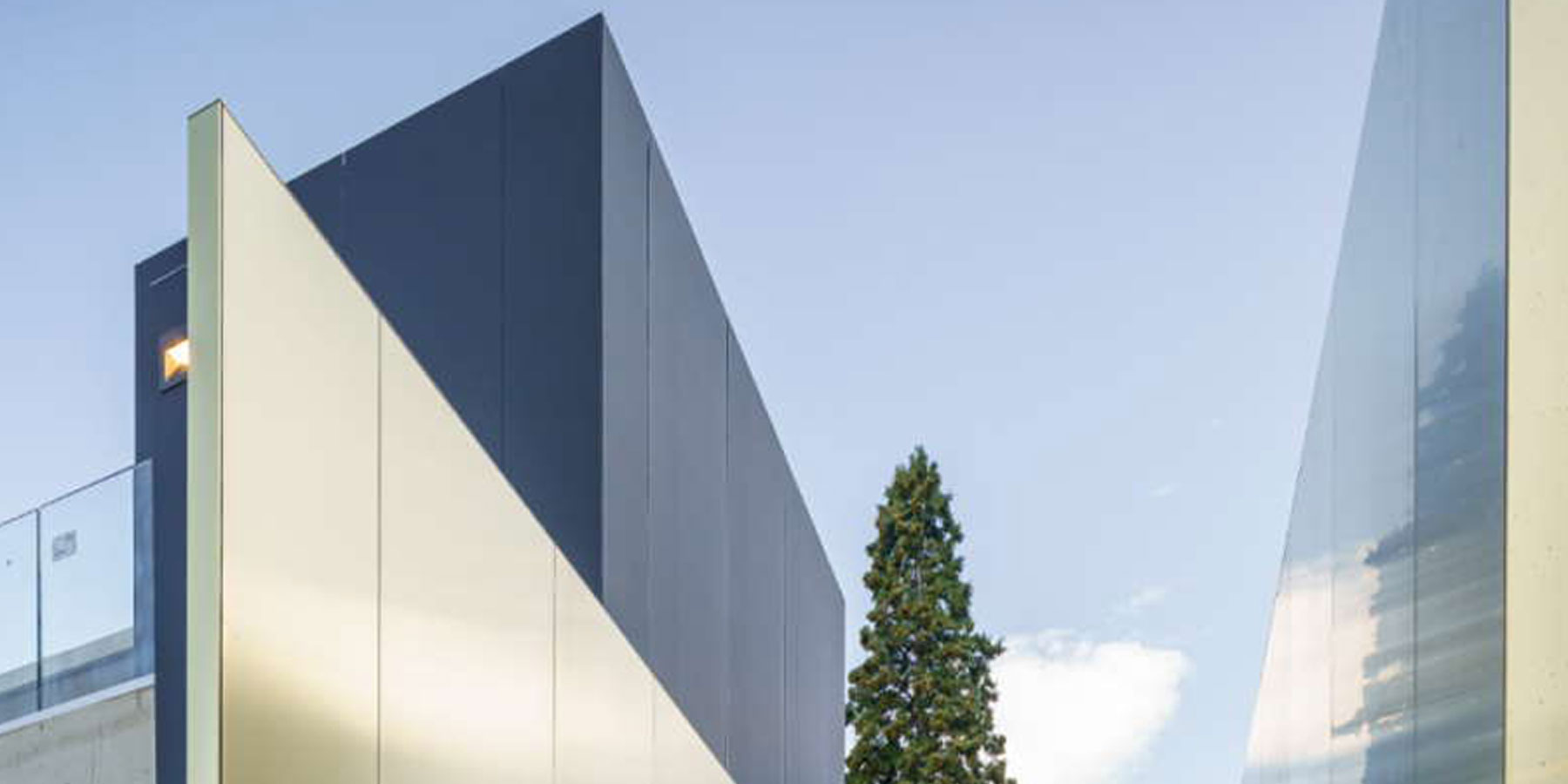

- Construction of ventilated, semi-ventilated and airtight façades
- Renovation of façades.
elZinc® PE
- Maximum length: 8.000 mm
- Standard width: 1.000 mm
- Total thickness: 4 mm
- Internal skin thickness: 0,5 mm
- External skin thickness: 0,5 mm
- Weight: 10 kg/m2
elZinc® FR
- Maximum length: 8.000 mm
- Standard width: 1.000 mm
- Total thickness: 4 mm
- Internal skin thickness: 0,5 mm
- External skin thickness: 0,5 mm
- Weight: 12,2 kg/m2
