Main Features

Structural underlays are designed to provide micro ventilation to the underside of the zinc, drain away any moisture, and offer acoustic absorption properties. They are specifically designed for use under fully supported traditional metal roofing and cladding. The extreme elasticity of the monofilaments that make up the spacer mat allows excellent sound absorption, significantly decreasing rain drumming noise. This product is a structural underlay mat fabricated with synthetic monofilaments, that can be purchased loosely bonded to a breather membrane with adhesive strips.

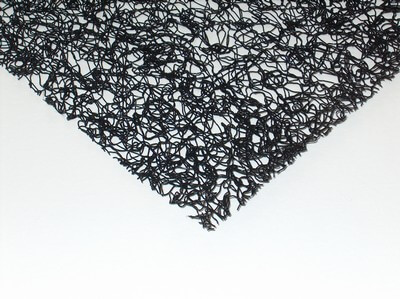

Structural Underlay

The structural mat only used as a micro ventilation layer.

Dimensions: Roll width: 1,4 m. / Roll Length: 30 m. / Rolls per pallet: 9

Structural Underlay + Breather Membrane

The structural mat loosely bonded to a breather membrane (with adhesive strips) which acts as a draining layer.

Dimensions: Roll width: 1,5 m. / Roll Length: 25 m. / Rolls per pallet: 10

Download Brochure

Structural Underlays Datasheet
